nVent ERIFLEX

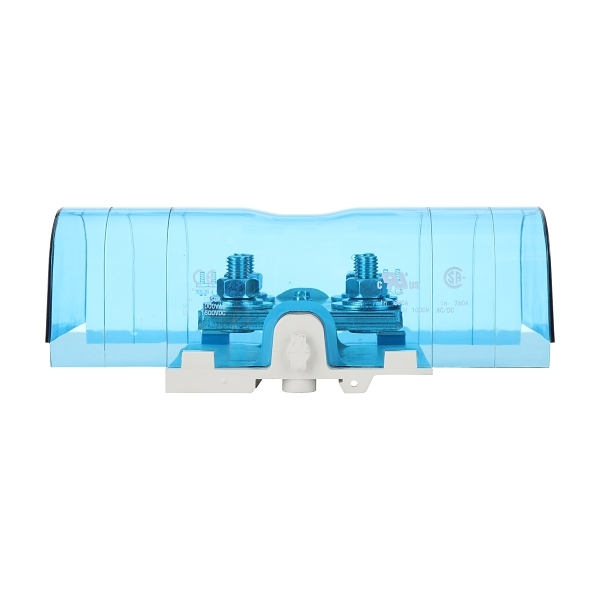

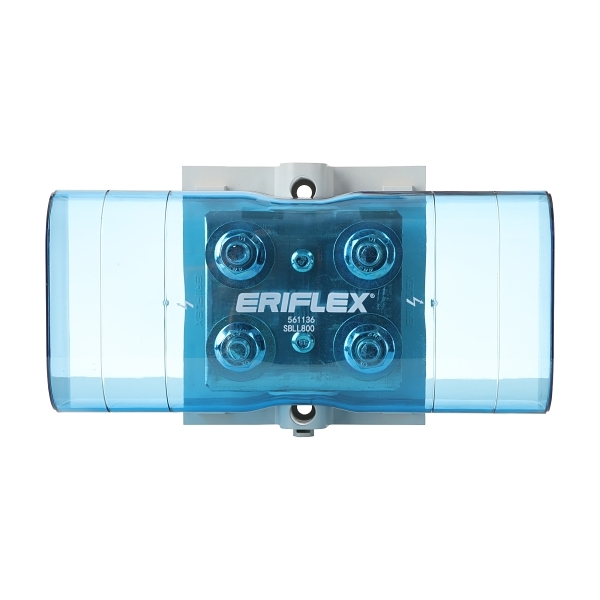

nVent ERIFLEX High Current Terminal 1250A In and Out 2 x M10 Lug 25 to 300mm Busbar 20 to 40mm
Item No. 561136
Product Range: High Current Terminal
Popular Accessories
Component Type (ETIM Class)
Distributor assembly terminal blocks
Electrical
Number of poles1
Rated insulation voltage Ui1000 V
Short time withstand current Icw, 1 sec57.6 kA
Max. rated current1250 A
Construction
Conductor materialAluminium/copper
With PE-railNo
With N-railNo
Dimensions
Height205.7 mm
Width115 mm
Depth75 mm
