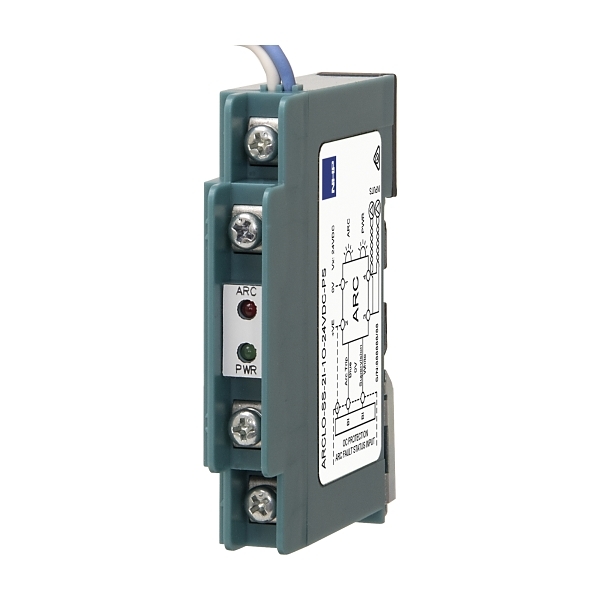

NHP Arclogix Optical SS Arc Detection Relay 2I and 1O 24V DC
Item No. ARCLOSS2I1O24VDCPS
Product Range: Arclogix
Component Type (ETIM Class)
Arc detection system
Electrical
Voltage type for actuatingDC
Rated control supply voltage Us at DC24-24 V
Max. flash to trip duration2.2 ms
Number of inputs2
Number of contacts as normally open contact1
Construction
Mounting methodDIN rail
Dimensions
Height82 mm
Width15.5 mm
Depth66 mm
Environment
Operating temperature-10-55 °C
Storage temperature-25-70 °C
