IME

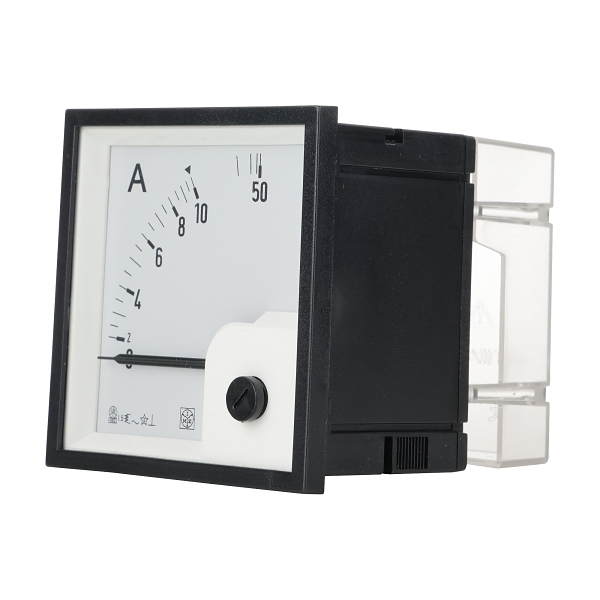

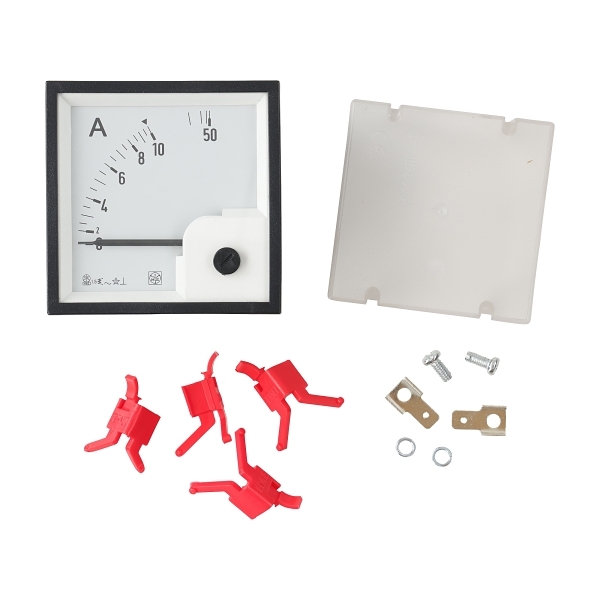

IME Analogue Ammeter Direct Connect Scale 0 to 20A Overrange Maximum 1000A AC
Item No. RQ72EAAC20A
Product Range: Analogue Meters
Component Type (ETIM Class)
Ampere meter for installation
Electrical
Nominal voltage600 V
Rated insulation voltage600 V
Type of measuring componentAnalogue
Accuracy class1.5
Voltage typeAC
Rated burden1.1 VA
Mains frequency50 Hz
Nominal frequency45-65
Current overload capacity, continuous value0.02 kA
Communication
Overrange indicationYes
Construction
ModelFront mounting
Housing materialPlastic
Measurement systemMoving coil
Degree of protection (IP), front sideIP52
Degree of protection (IP), front sideIP20
Scales lightingNo
Mechanical
Connection typeScrewed terminal
Number of meters displayed1
Max. needle deflection90 °

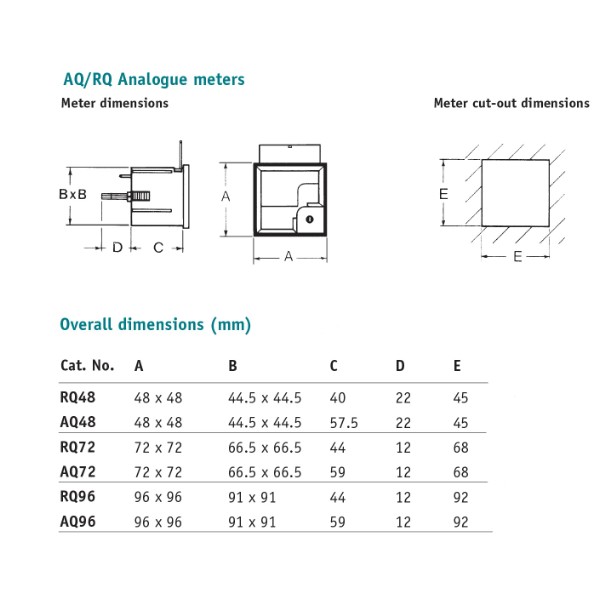

Dimensions
Ampmeter width72 mm
Ampmeter height72 mm
Height (cutout)68 mm
Width (cutout)68 mm
Depth69 mm
Weight0.15 kg
Width72 mm
Height72 mm
Environment
Storage temperature-40-80 °C
Operating temperature-25-50 °C
Pollution degree2
