Socomec

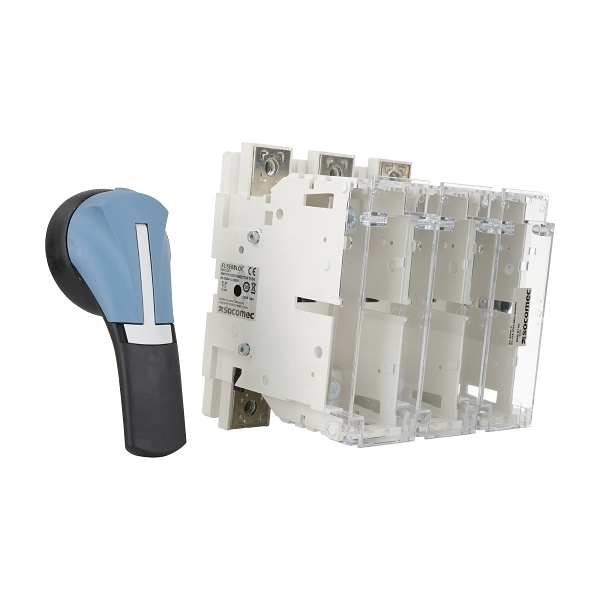

Socomec SSF Fuse Switch kit, w/ External Handle, suits DIN fuses, 3P 250A
Item No. SSFDN2503P
Product Range: Fuse Switch
Component Type (ETIM Class)
Fuse switch disconnector
Electrical
Rated current250 A
Max. rated operation voltage Ue AC690 V
Max. rated operation voltage Ue DC440 V
Rated permanent current at AC-21, 400 V250 A
Rated permanent current at AC-23, 400 V250 A
Rated operation current Ie at DC-21, 220 V250 A
Rated operation current Ie at DC-22, 220 V250 A
Short time withstand current Icw, 1 sec80 kA
Rated impulse withstand voltage Uimp8 kV
Construction
Degree of protection (IP), front sideIP30
Mechanical
Suitable for fusesNH1
Mechanical life (service cycles)10000 cycles
Dimensions
Height195 mm
Width234 mm
Depth146 mm
