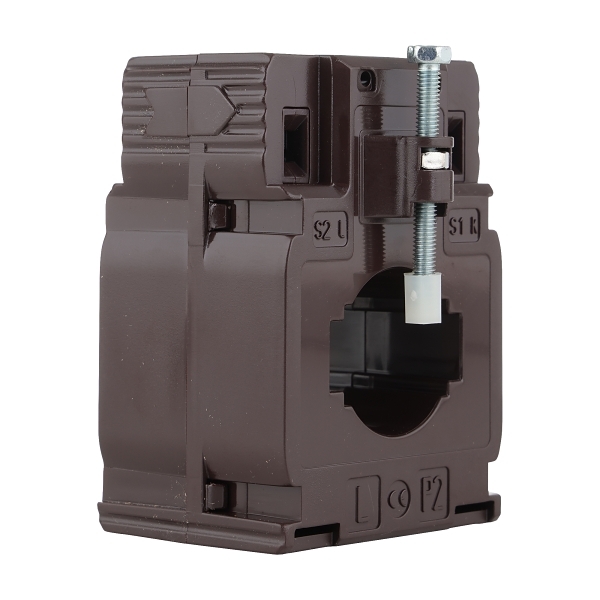

IME TA327 Solid Core Current Transformer 125A/5A 27mm 3.5VA Class 1, 2VA Class 0.5
Item No. TA3271255A
Product Range: Solid Core CT
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current125 A
Secondary rated current5 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)7.5 kA
Rated continuous thermal current Icth (x primary current)7.5 kA
Accuracy class0.5
Insulation class (IEC 61869-1, 61869-2)B
Security factor5
Construction
Current transformer typeSolid core
Material housingPolycarbonate (PC)
ModelThrough-feed current converter
With shock protectionYes
Snap mountingYes
Secondary connectionScrew connection
Number of primary inputs1
Dimensions
Opening diameter27 mm
Environment
Storage temperature-40-85 °C
